📡 1507G 8MB DK V1.01 RS232 Upgrade Guide 2026
🔧 Complete 1507G RS232 Upgrade Guide: Learn how to upgrade the 1507G 8MB DK V1.01 Receiver using the RS232 method.
This complete guide covers the required RS232 cable, Ground (GND), Loader Tool, COM Port, software file and the complete upgrade procedure.
If you have a 1507G 8MB DK V1.01 receiver and need to upgrade its software through RS232, this guide provides a complete step-by-step method for the upgrade process.
🧰 Required Items

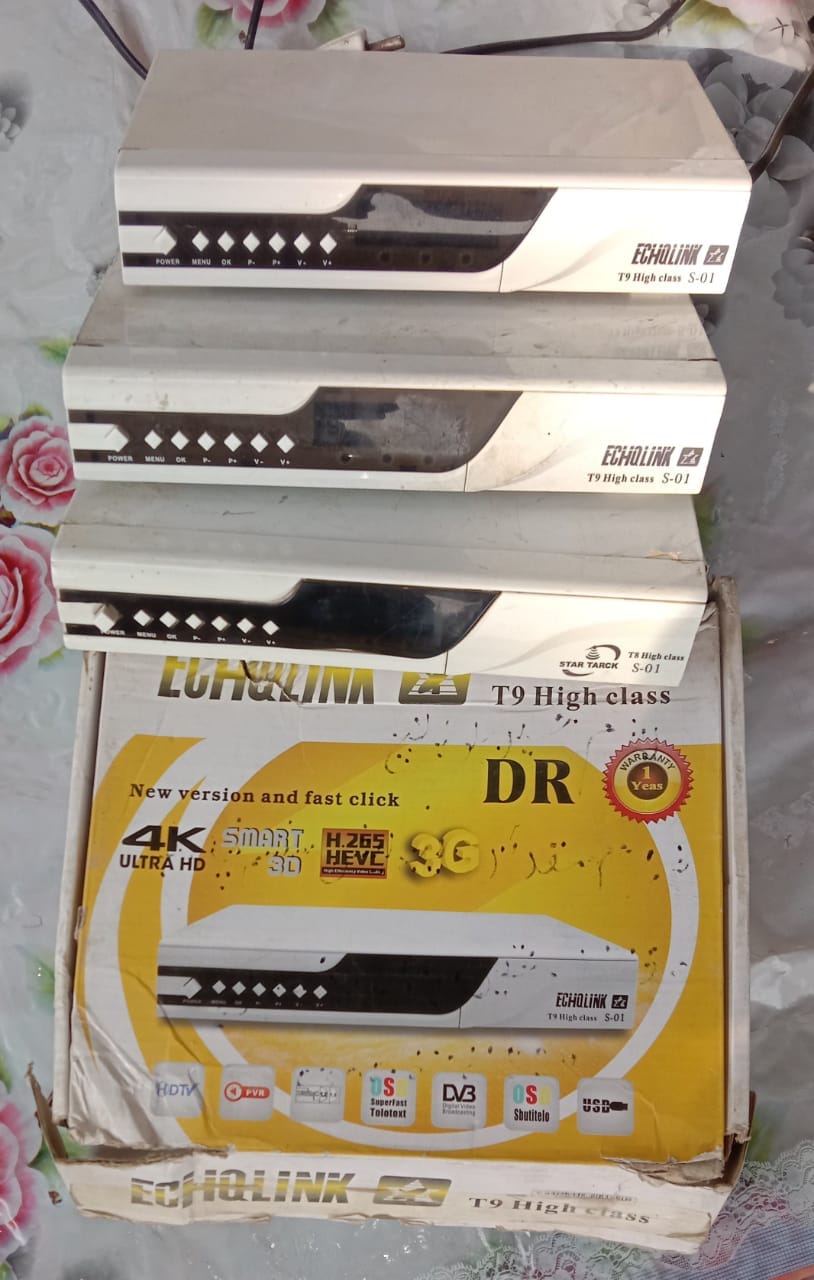

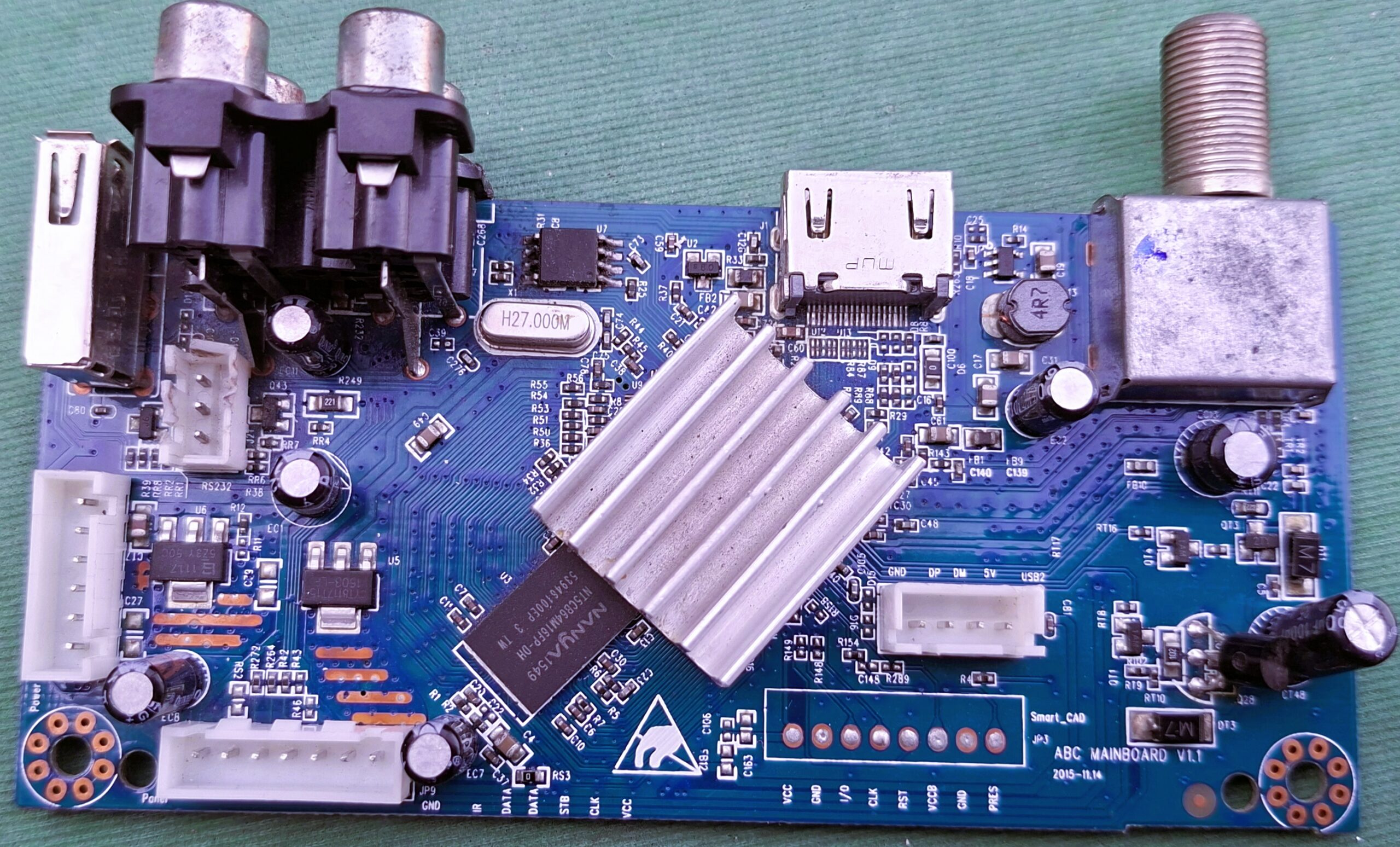

✅ 1507G 8MB DK V1.01 Receiver
✅ 1507G 8MB DK V1.01 Receiver
✅ RS232 Serial Cable (Null Modem)
✅ USB to RS232 Converter (if no COM port)
✅ RS232 Connector
✅ PC or Laptop with COM Port / USB-to-COM Converter
✅ 1507G RS232 Loader / Upgrade Tool
🪜 Step-by-Step RS232 Upgrade Process
🔌 Connect RS232 Cable between PC and Receiver.
🛠️ Open the 1507G RS232 Loader Software on your PC.
💻 Select the correct COM Port in the Loader.
📂 Click Browse and select your 1507G 8MB DK V1.01 .bin file.
▶️ Click Start or Download button in the Loader.
🔌 Power ON the receiver — the upgrade process will start.
📊 Wait for the firmware transfer to complete.
✅ After successful upgrade, remove the cable and restart the receiver.
🚀 Complete 1507G RS232 Upgrade Procedure
1️⃣ Turn OFF the Receiver: First, turn OFF the 1507G 8MB DK V1.01 receiver before connecting the RS232 cable.

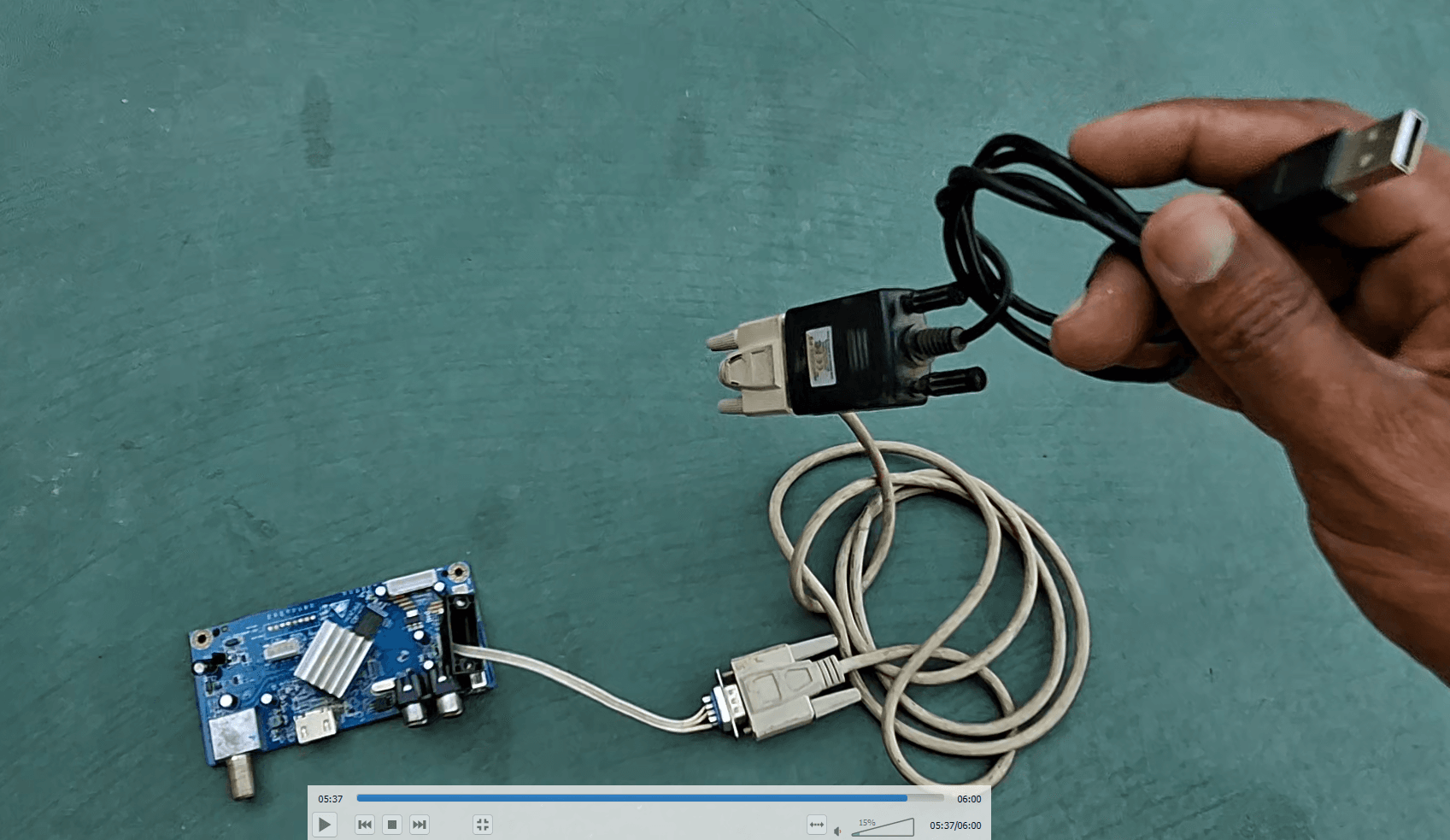

2️⃣ Connect the RS232 Cable: Connect the RS232 cable between the receiver and your PC or laptop. Make sure the Ground (GND) connection is correct.

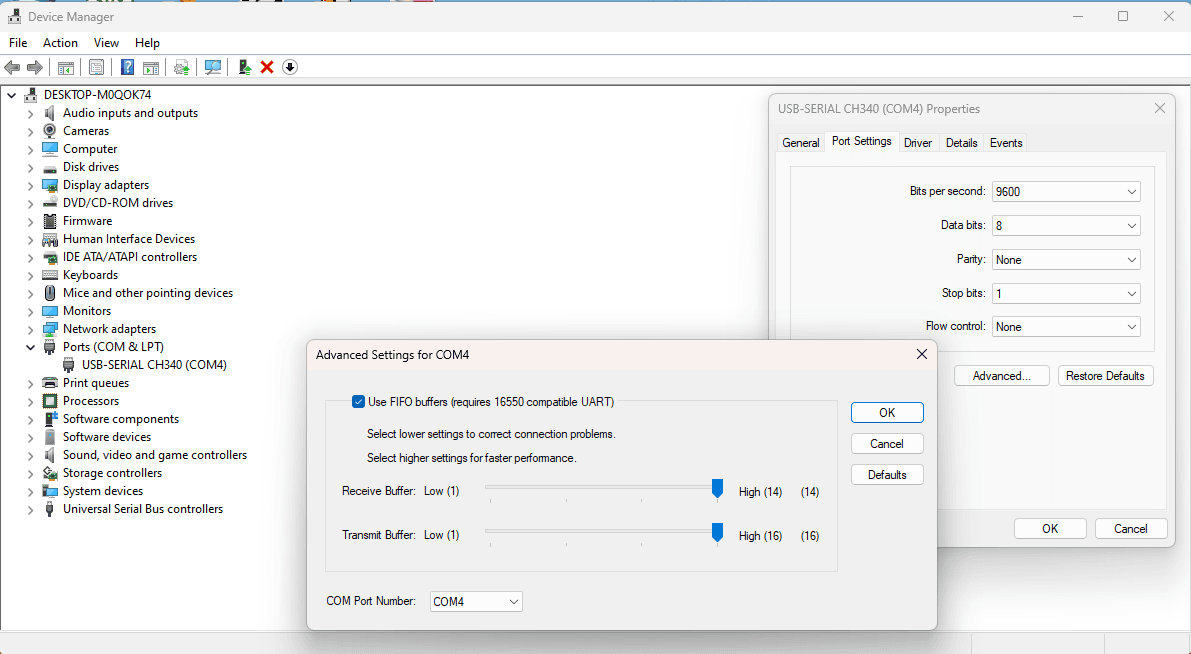

3️⃣ Check the COM Port: Open Windows Device Manager and check the COM Port assigned to your RS232 adapter.

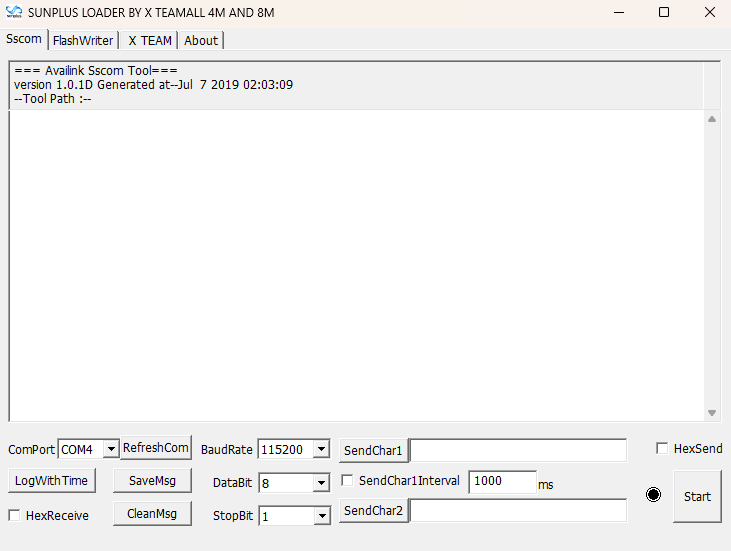

4️⃣ Open the Loader Tool: Open the compatible 1507G RS232 Loader / Upgrade Tool and select the correct COM Port.

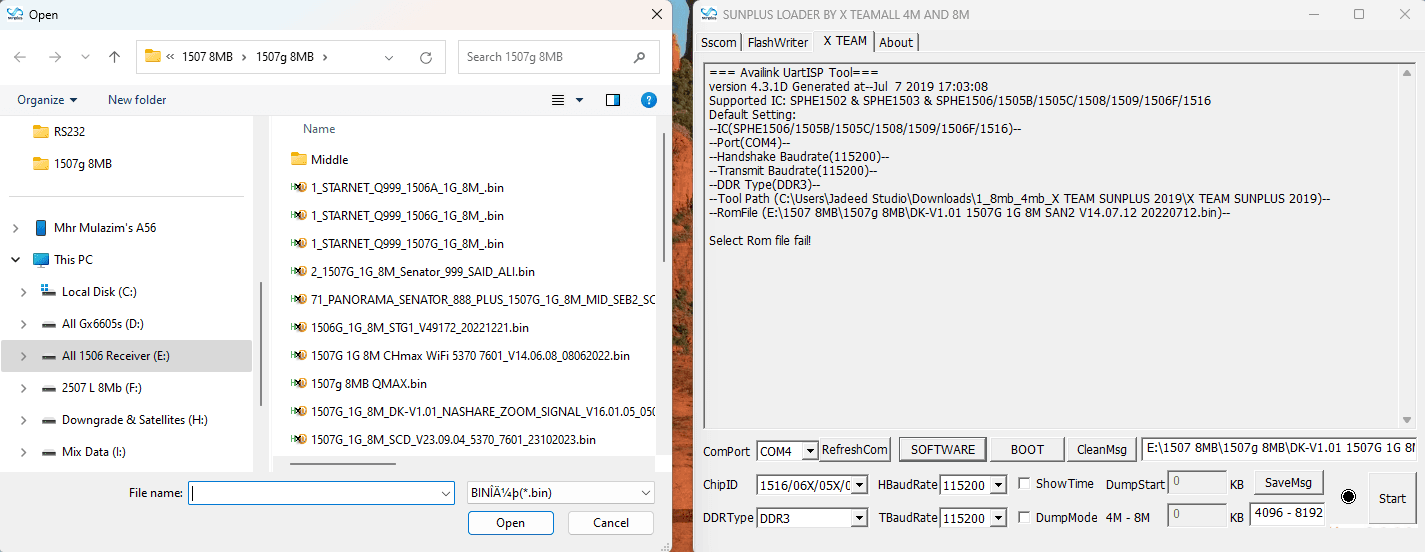

5️⃣ Select the Software File: Click Browse and select the correct 1507G 8MB DK V1.01 .bin software file.

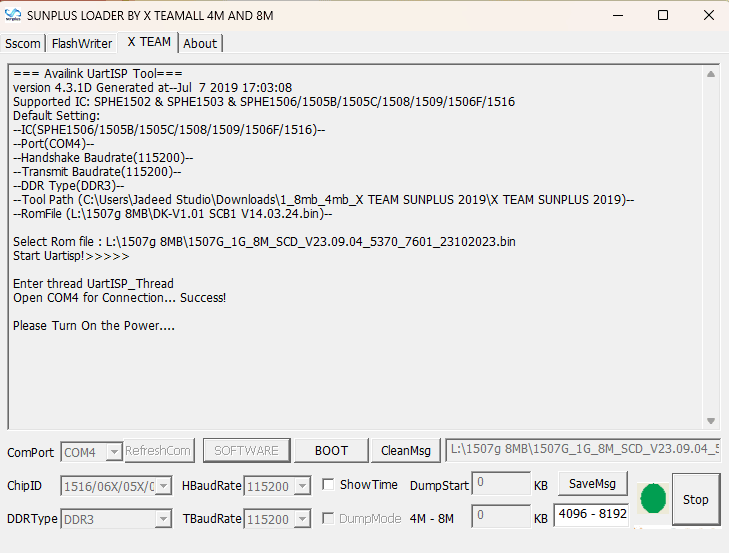

6️⃣ Start the Upgrade: Click the Start or Download button inside the Loader Tool.

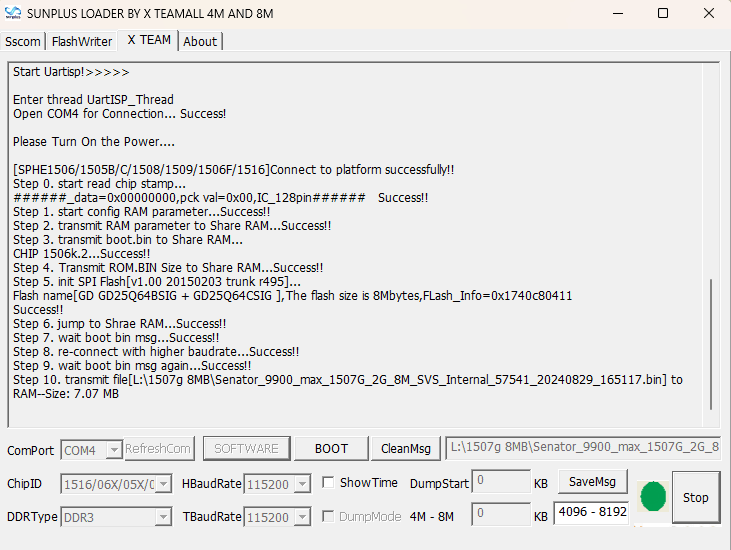

7️⃣ Power ON the Receiver: When the Loader is ready, turn ON the receiver. The firmware transfer should begin.

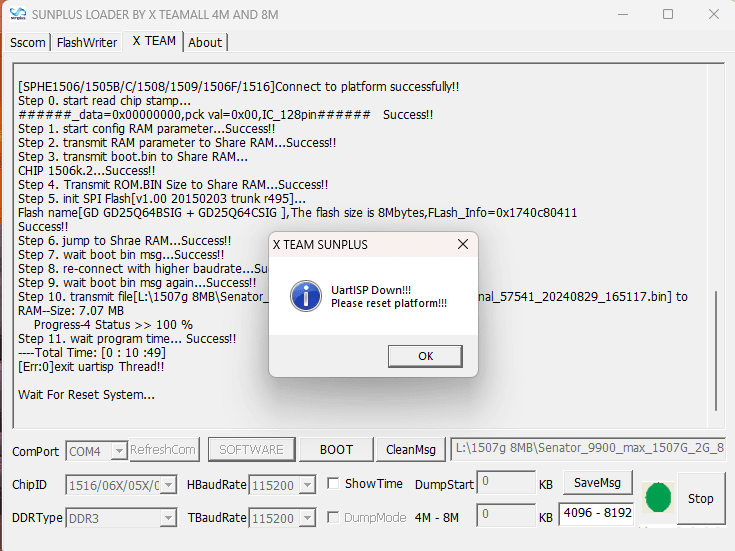

8️⃣ Wait for Completion: Wait until the software transfer has completely finished. Do not disconnect the RS232 cable and do not interrupt the power.

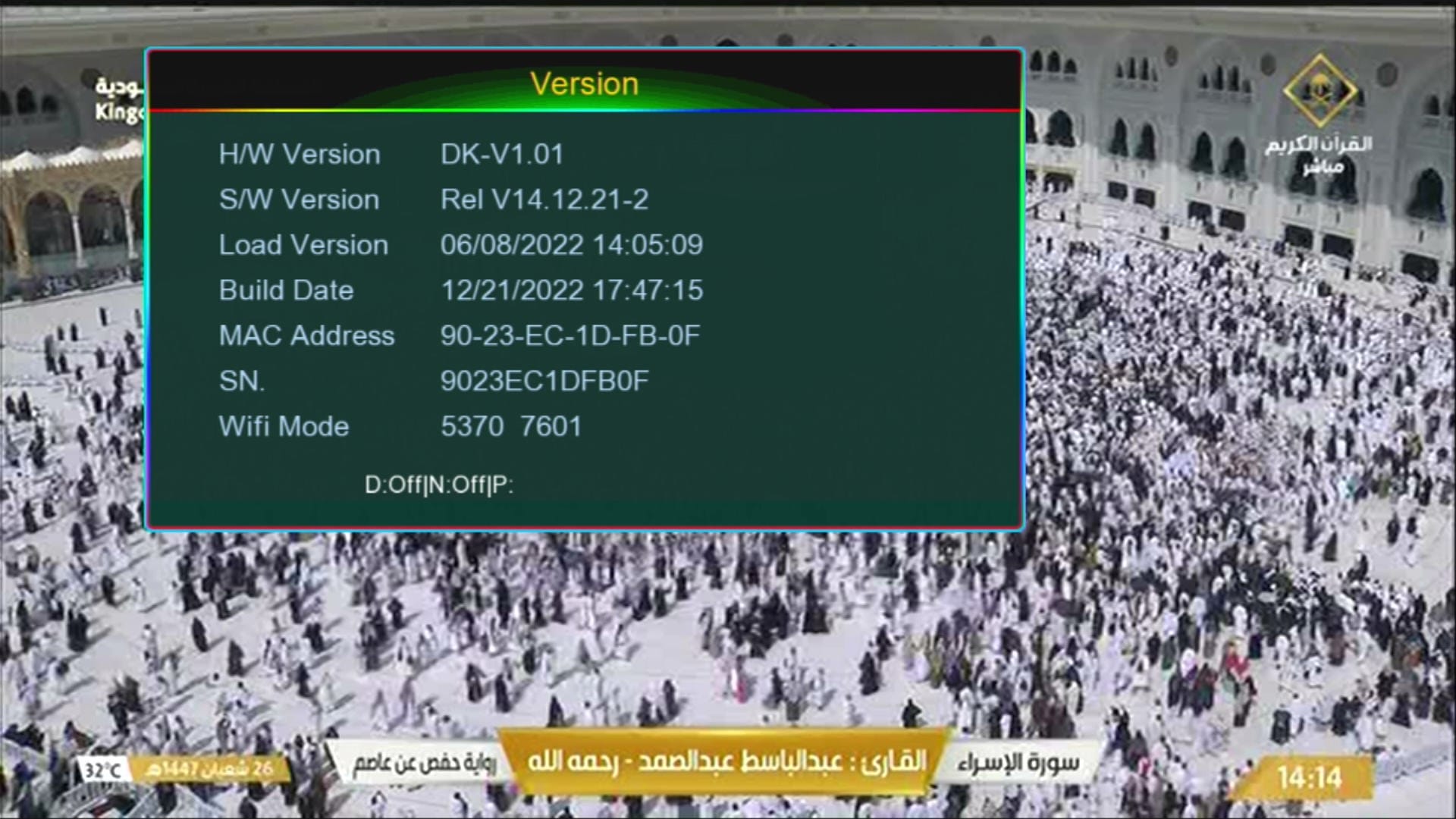

9️⃣ Restart the Receiver: After the Loader reports that the upgrade is complete, remove the cable and restart the receiver normally.
⚠️ Important Warning: Always use software that matches the exact 1507G 8MB DK V1.01 receiver.
Incorrect firmware, incorrect RS232 wiring or power interruption during the upgrade process may cause upgrade failure or receiver problems.
⬇️ Download RS232 Tools & Software
🔐 Click the download button to start the 60-second countdown. After the countdown finishes, the download link will automatically open in a new tab.
🌐 1507G 8Mb DK V1.01 Software Page🎥 Watch 1507G 8MB DK V1.01 RS232 Upgrade Tutorial
🎬 Watch the complete 1507G 8MB DK V1.01 RS232 upgrade procedure in the video tutorial above.
❓ Frequently Asked Questions
❓ What is required for the 1507G RS232 upgrade?
You need an RS232 cable, correct GND connection, PC or laptop, COM Port, compatible Loader Tool and the correct 1507G 8MB DK V1.01 firmware file.
❓ What should I do if the Loader does not detect the receiver?
Check the COM Port, RS232 cable, GND connection, USB-to-RS232 driver and receiver power status.
❓ Can I use any 1507G software?
No. Always use software that matches the exact 1507G 8MB DK V1.01 receiver.
❓ Can I disconnect the RS232 cable during the upgrade?
No. Keep the RS232 connection stable until the firmware transfer has completely finished.
❓ Can I use a USB-to-RS232 converter?
Yes. If your PC or laptop does not have a built-in COM Port, a compatible USB-to-RS232 converter can be used with the required driver.
🎯 Conclusion
The 1507G 8MB DK V1.01 RS232 Upgrade process requires the correct RS232 cable, GND connection, COM Port, compatible Loader Tool and correct firmware file.
📡 Follow the complete step-by-step guide and watch the video tutorial for the practical RS232 upgrade demonstration.
